Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: CO2
  • Applicable Material: Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
  • Cutting Thickness: depends on Materials
  • Cutting Area: less than 1300*900mm
  • Cutting Speed: 0-10000mm/min
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: Lasercut 6.0
  • Graphic Format Supported: AI, BMP, DWG, DXF, PLT
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: ZK-1390
  • Model Number: 1300*900mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: 130W CO2 Laser cutting machine with red pointer ZK-1390
  • Laser tube: CO2 60W laser tube
  • red point: yes
  • Working area: 1300* 900mm
  • platform: double platform, honeycomb and blade slip
  • Control system: Leetro
  • control software: Lasercut
  • mainly working: cutting or engraving
  • up and down platform: yes
  • color: optional

Packaging & Delivery

Packaging Details Standard plywood case for laser cutting machine
Delivery Time 3-5 days after deposit for laser cutting machine

Double platform laser machine,130W CO2 Laser cutting machine with red pointer ZK-1390*130W 1300*900mm

Laser cutting machine parameter reference:

Model

ZK-1290

Certification

CE

Laser Type

CO2 Laser Tube

Laser Power

80W

Working Size

1200*900mm

Working table

Honey comb platform

Position system

Infrared positioning system

Drive mode

Step motor

Guide rail

Linear square guide rail (Taiwan HIWIN/PMI)

Control pannel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Minimum Shaping Character

English: 1mm

Control system

Leetro (MPC6525)

Control software

Laser cut 5.3

Design software

Corel draw

Control pannel

DSP

Resolution accuracy

<0.01mm

Location precision

<0.01mm

Cooling Mode

Water pump cooling system

Water Protection System

yes

Blow-off system

Air pump

Working Environment

Temperature:0-45  Humidity 5%-95%

Files Supported

Plt, Dst, Dxf, Dwg, Ai, Las  Autocad, Coreldraw

Working Voltage

220v 50/60HZ, single phase

Spare parts for free

water pump, air pump,exhaust pipe,fan, software dog,data line, power line, software CD, limit switch,double-sided foam mounting tape, hex wrench, laser machine user manual.

Optional items

100W/130W/150W laser tube, blade slip platform

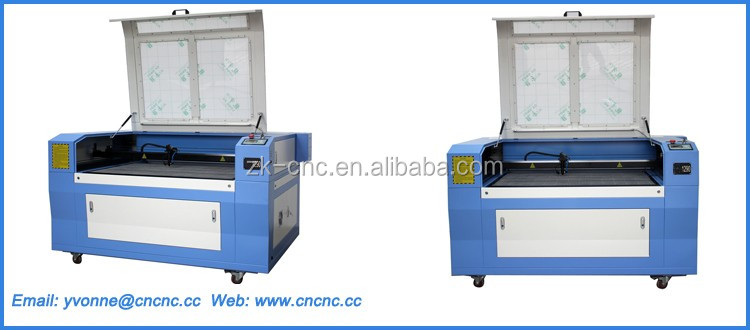

Laser cutting machine picture reference:





Laser cutting machine instruction

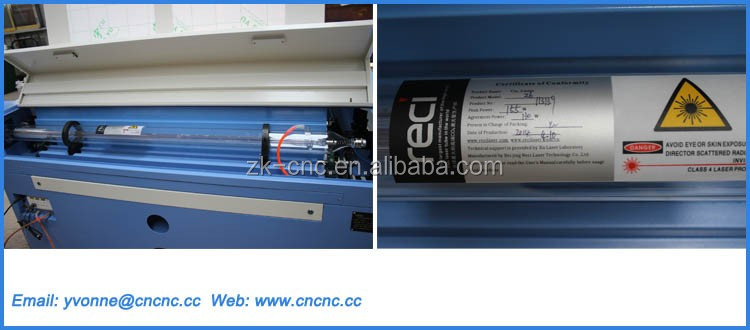

- 130W CO2 Laser tube , RECI Brand. Servic wholeworld.





- Laser head with red point for nonmetal

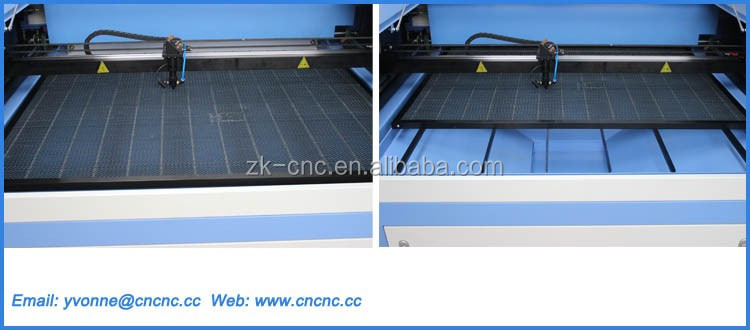

- Double platform: honeycomb platform for engraving, blade slip platfom for cutting



- Control box of laser cutting machine ZK-1390:

Driver and leetro control card inside:

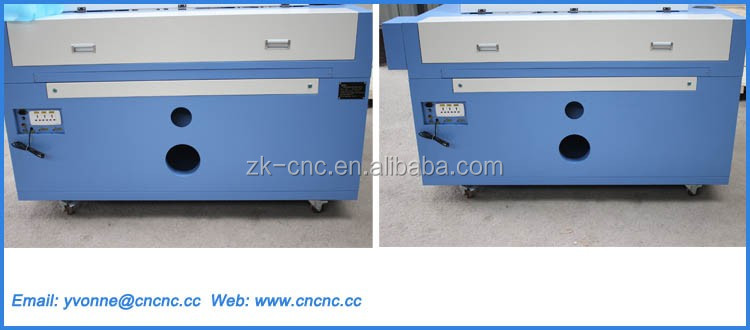

- Back of the machine

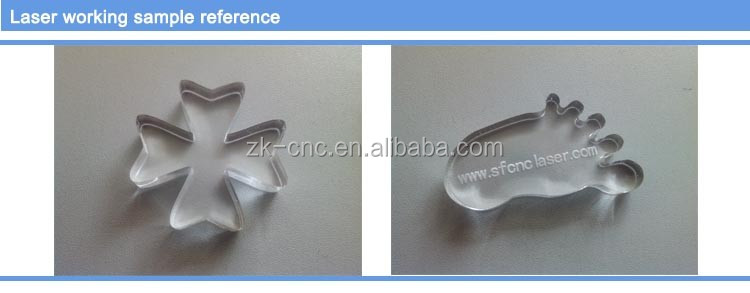

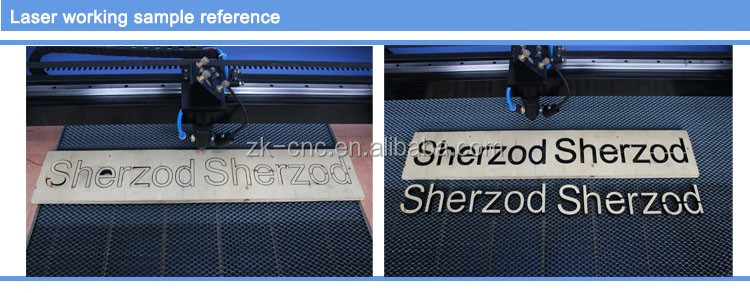

Laser cutting machine sample reference:
