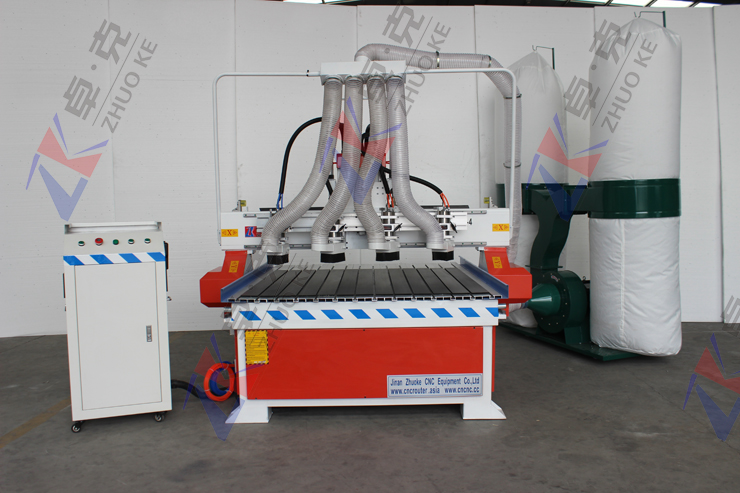

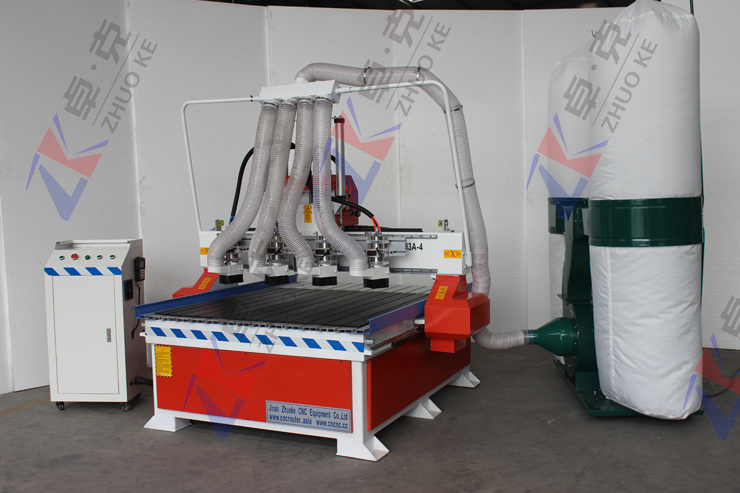

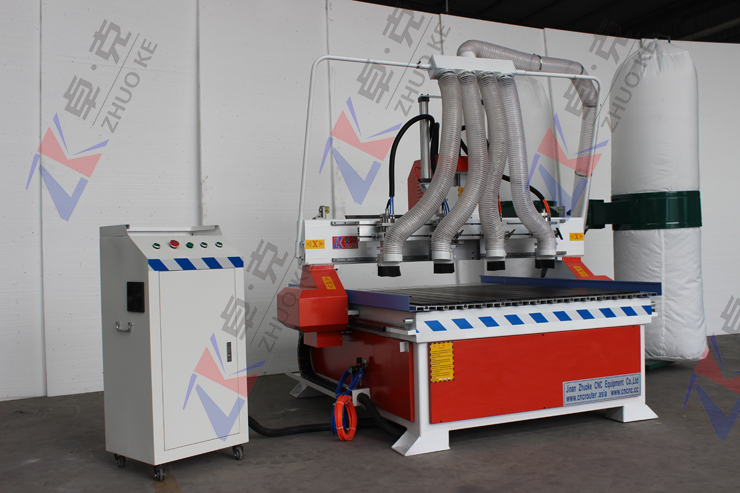

4 Spindles Woodworking 1313 CNC Router 1300*1300mm With 2.2Kw Spindle DSP Offline Control Dust Collector ZKM-1313A

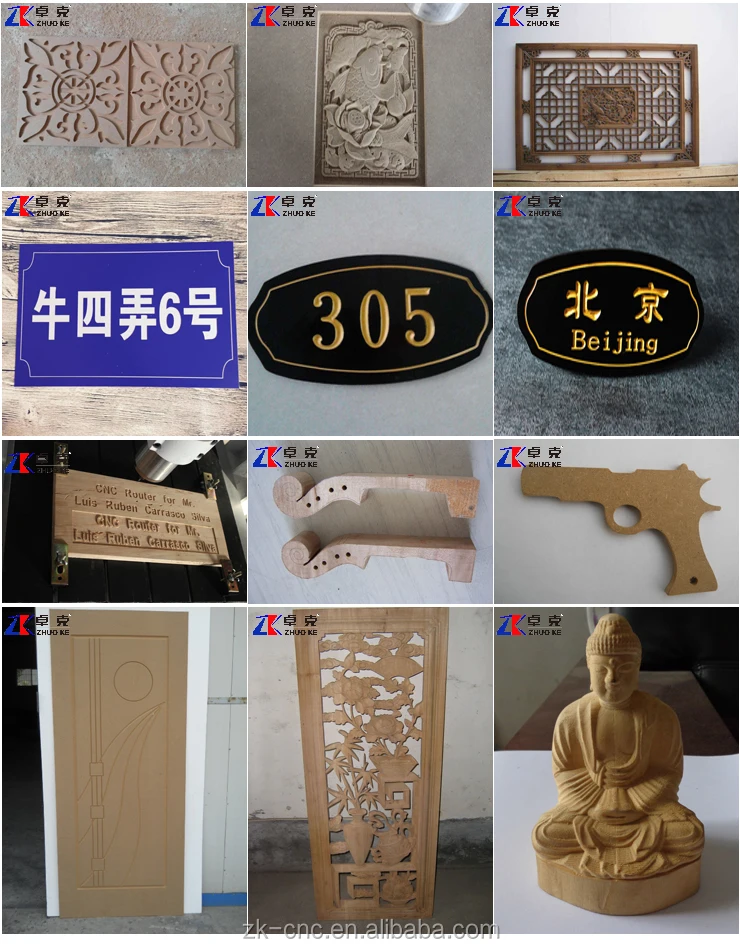

*Woodworking industry : cupboard door , craft wooden door , solid wood door , panel engraving and cutting , stereo wave board processing , panel furniture , painting door , paint-free door , screen , craft windows working , furniture milling and engraving , wooden musical instrument 3D engraving .
*Advertising industry : advertising signs , acrylic cutting , logo making , plastic molding , a variety of advertising and decorative products making
MDF , wood ,plywood , solid wood , PVC , acrylic , double - color board , plastic plate , luminous panel , organicglass , aluminum , copper , silver , gold , iron , stainless steel and other materials
1.Welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.
2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

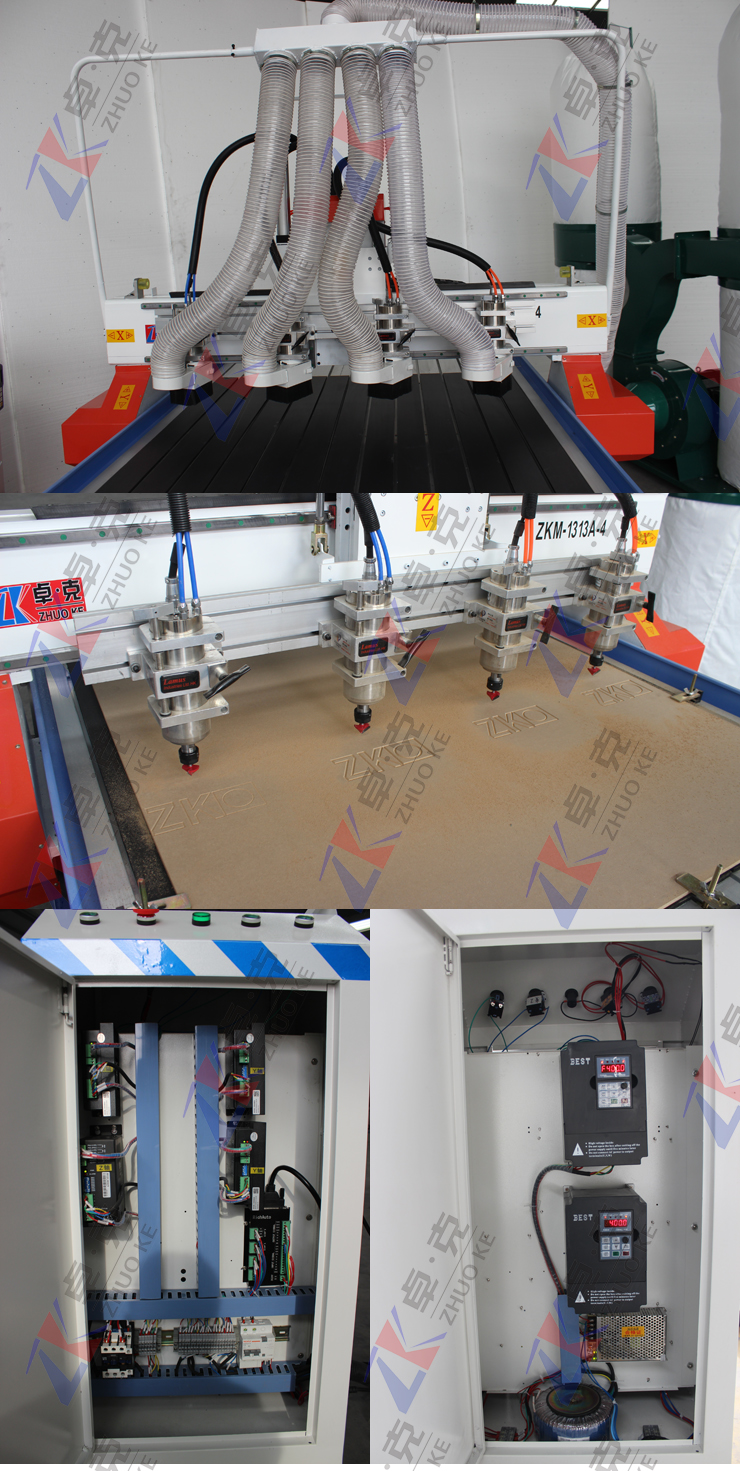

3. Large power 2.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.
4. China famous stepmotor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.
5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.
8. Auto lubrication system more convenient for maintenance.
9. Semi-auto tool calibration, more convenient for each time Z-axis 0 point setting.
10. Favorable compatibility withvarious CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
11. With thefunctionof Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
XY-axis working area
Welded steel pipe machine holder and machine bed, cast iron vertical shafts and transom
Aircraft aluminium T slot
XYZ-axis linear square guide rail
XY rack gear, Z ballscrew
Z-axis working area
Lower or higher as you need
Max traveling speed
Bigger power or servo motor
2.2kw water cooling *4
5.5KW or air-cooled
3.175mm, 4mm, 6mm,8mm,10mm,12.7mm
Mach3 or DSP offline
Design software when delivery
Compatible design software
Artcam, Type3, Ucancam, JDPaint, MasterCAM
G code ,U00, mmg nc,etc
Running ambient temperature
AC 380V,50/60Hz, three single phase
220V single phase is optional
Auto tool calibration
Other tools as you need
Water pump, tools, NcStudio card, power line, USB line, brush, spanner, collet, fixtures, user manual CDs.
Other optional items
Original NCStudio control system, air cooling spindle, dust colletor, auto oiling system, computer cabinet, rotary axis, wireless handwheel
If you are interested in our machine , just send us your inquiry letter !
