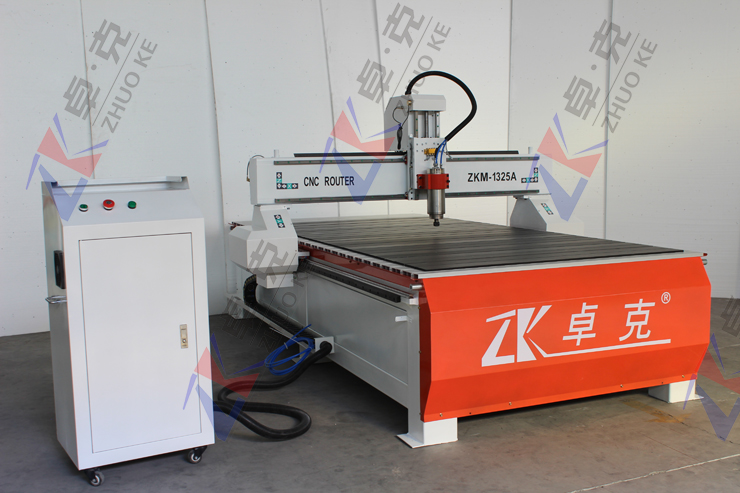

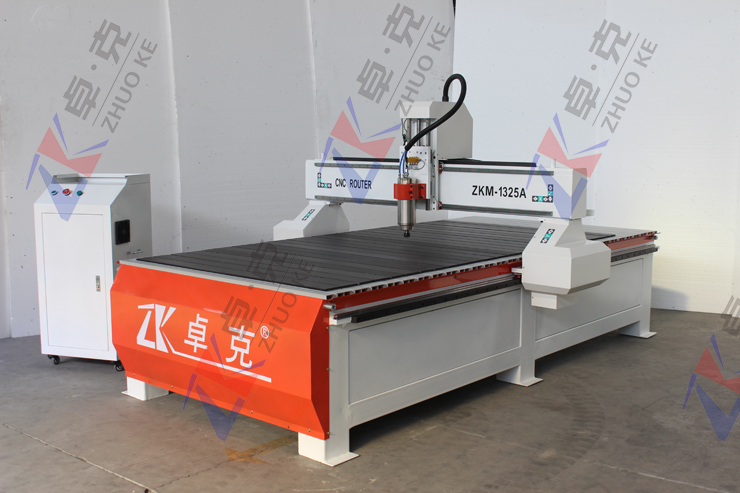

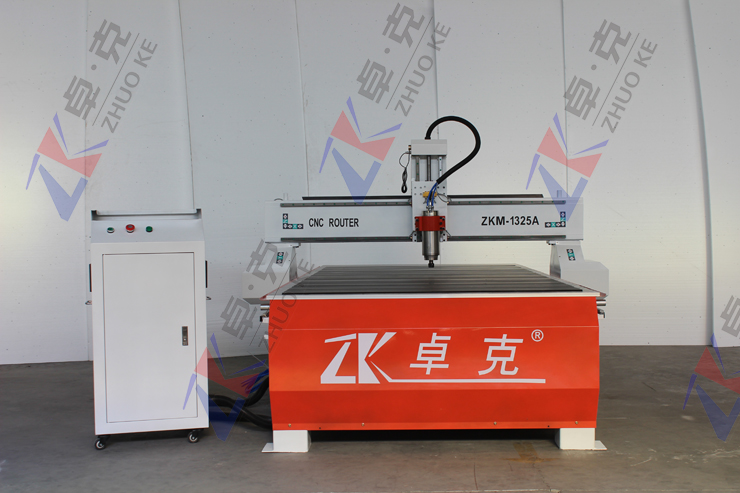

380V 3.2Kw 1325 Wood CNC Router Machine 1300*2500mm, 4X8 FT CNC Router With Best Price

FOB Reference Price:Get Latest Price
US $3,500-4,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
qingdao/shanghai/dalian/ningbo port as you need
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Zhuoke
Model Number:
ZK-1325
Voltage:
380V, AC 380V , 50/60Hz, three phase
Power(W):
3.2kw
Dimension(L*W*H):
1300*2500*200mm
Weight:
1000KG
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
ZK-1325
Working size:
1300*2500*200mm
Spindle power:
3.2kw water cooling
Spindle speed:
0-24000rpm/min
Control system:
PCI NCStudio Control
Design software:
Artcam 2008
Guide Rail:
Hiwin Linear square guide rail
Transmission:
Rack transmission
Optional:
Vacuum Table & Dust Collector
Packaging & Delivery
Packaging Details
one plywood case, 13.5CBM,. 1000KG
Delivery Time
15 working days after receive deposit

380V 3.2Kw 1325 Wood CNC Router Machine 1300*2500mm, 4X8 FT CNC Router With Best Price







Applicable Industries



*Woodworking industry : cupboard door , craft wooden door , solid wood door , panel engraving and cutting , stereo wave board processing , panel furniture , painting door , paint-free door , screen , craft windows working , furniture milling and engraving , wooden musical instrument 3D engraving .



*Other industry



*Advertising industry : advertising signs , acrylic cutting , logo making , plastic molding , a variety of advertising and decorative products making



Applicable Materials

MDF , wood ,plywood , solid wood , PVC , acrylic , double - color board , plastic plate , luminous panel , organicglass , aluminum , copper , silver , gold , iron , stainless steel and other materials



Models

ZKM-1325A , ZKM-1325B , ZKM-1530 , ZKM-2030 , Cylinder CNC Router , Multi-head CNC Router and ATC CNC Router .

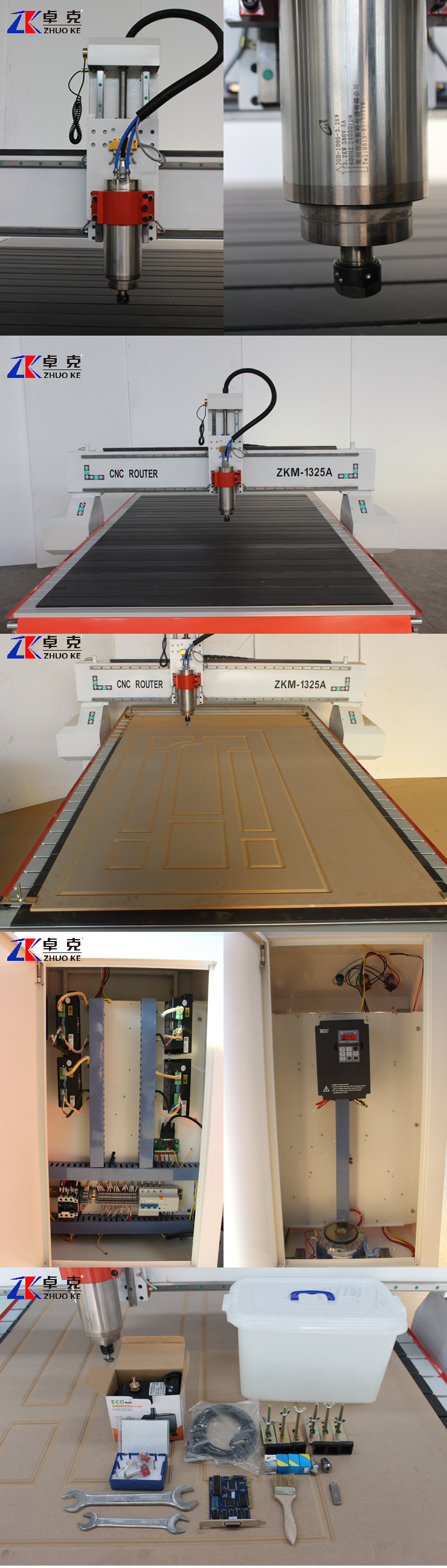

Machine Characters

1.Welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

3. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

4. China famous 86BYGH450B stepper motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6. PCI NCStudio control system , connect with Desktop computer .support Windows XP/7 , can show the path of XYZ working .

7. Dust collector, helping to suck dust, milling dust,keeping machine cleaning.

8. Auto lubrication system more convenient for maintenance.

9. Semi-auto tool calibration, more convenient for each time Z-axis 0 point setting.

10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.





Technical Data

Items

Basic configuration

Optional item

Certificate

CE



XY-axis working area

1300*2500mm



Material

Welded steel pipe machine holder and machine bed, cast iron vertical shafts and transom



Moving way

Gantry moving



Working table

Aircraft aluminium T slotVacuum table
Guide way

XYZ-axis linear square guide rail



Driving mode

XY rack gear, Z ballscrew



Z-axis working area

200mm

Lower or higher as you need

Max traveling speed

25000mm/min



Engraving speed

12000mm/min



Mechanical precision

0.05mm



Driving method

Stepper motor

Bigger power or servo motor

Spindle

3.2kw water cooling

5.5KW or air-cooled

Spindle speed

0-24000rpm



Collet type

ER 20



Tools diameter

3.175mm, 4mm, 6mm,8mm,10mm,12.7mm



Control system

PCI NCStudio

Mach3 or DSP offline

Design software when delivery

Artcam2008



Compatible design software

Artcam, Type3, Ucancam, JDPaint, MasterCAM



Command

G code ,U00, mmg nc,etc



Running ambient temperature

0-45℃



Relative humidity

30%-75%



Voltage

AC 380V,50/60Hz, three single phase

 220V single phase is optional

Auto tool calibration

For Z-axis



Tools

12 pcs

Other tools as you need

Accessories

Water pump, tools, NcStudio card, power line, USB line, brush, spanner, collet, fixtures, user manual CDs.

Other optional items

Original NCStudio control system, air cooling spindle, dust colletor, auto oiling system, computer cabinet, rotary axis, wireless handwheel
