Quick Details

  • Condition: New
  • CNC or Not: CNC
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Zhuoke
  • Model Number: ZHUOKE-6090
  • Voltage: 220V
  • Power(W): 2.2KW
  • Dimension(L*W*H): 1.5*1.2*1.6m
  • Weight: 350kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Working area: 600*900*150mm
  • Materials: Cast iron machine bed cast aluminum gantry
  • Transmission: Ball Screw
  • Guide Rail: Linear Square Guide Rail
  • Working Table: Stainless Steel Water Slot Table
  • Driving mode: 86BYG-450A Stepper Motor
  • Spindle motor: 2.2KW Water Cooling Spindle
  • Spindle speed: 0-24000rpm/min
  • Control system: DSP Offline Control
  • Empty traveling speed: 0-8000mm/min

Packaging & Delivery

Packaging Details One plywood case 3.5CBM 350kg
Delivery Time Shipped in 10 days after payment
Product Description

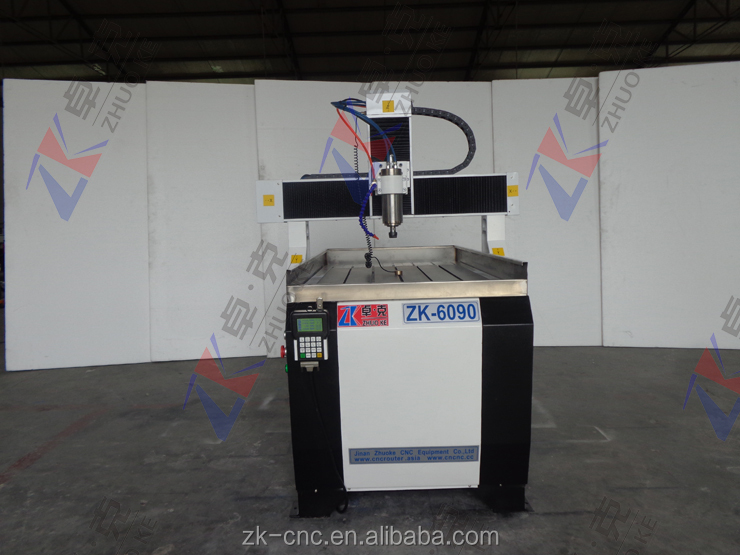

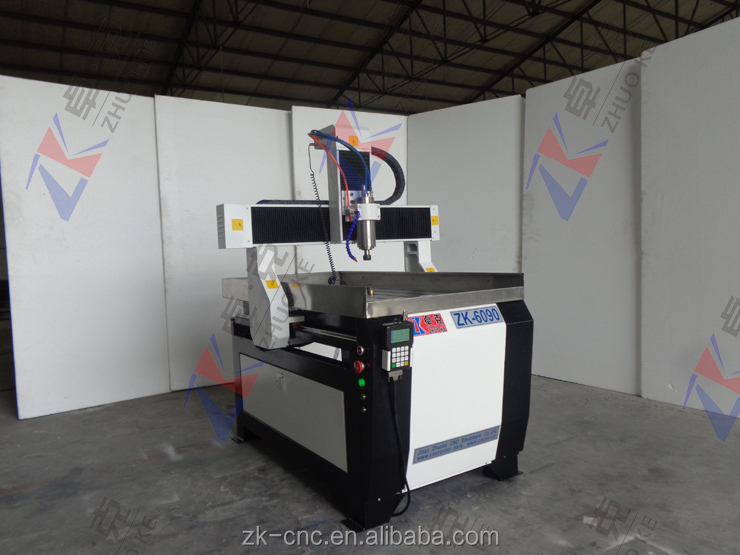

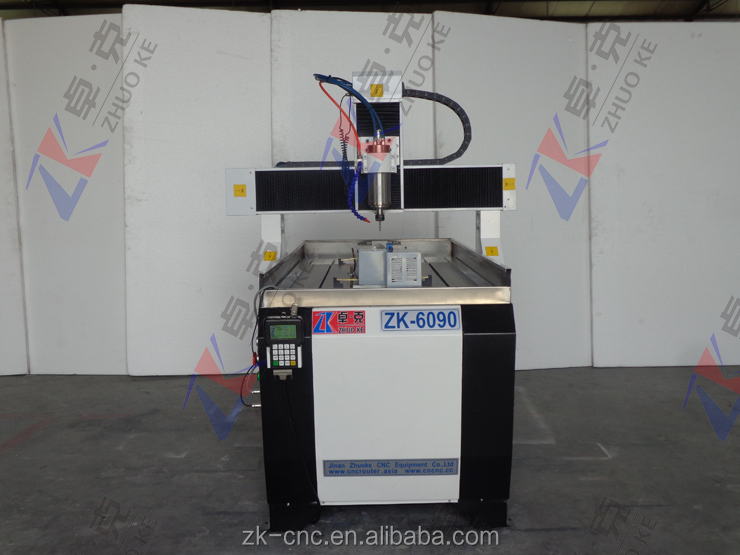

Small 6090 CNC Router For Wood Metal Arcylic 600*900mm DSP 4 Axis Control ZHUOKE-6090-2.2KW

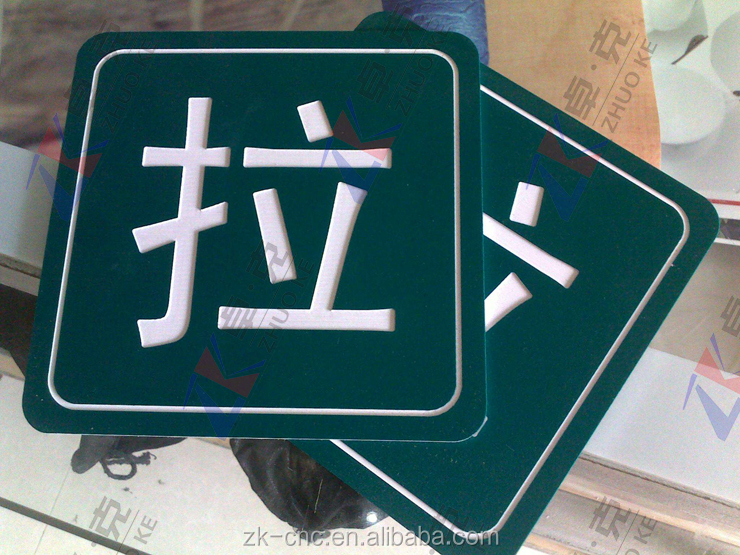

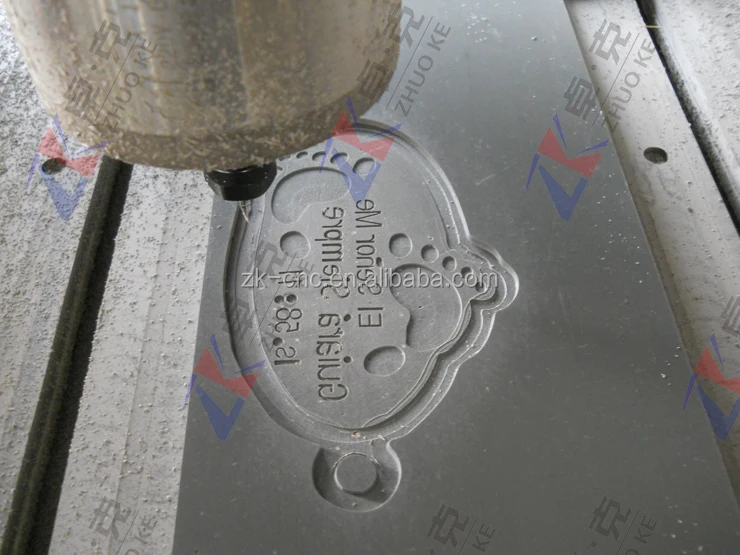

ZHUOKE-6090 Metal Wood CNC Router is our best selling small size cnc router , it is mainly for small size materials processing like stainless steel engraving ,copper engraving ,aluminum engraving , double color board engraving ,name plate engraving ,arcylic engraving & cutting ,MDF engraving & cutting , pvc cutting , aluminum composite panel cutting and other kinds of materials , you can check the below samples pictures for referrence !



To know more about our ZHUOKE-6090 CNC , please check the below technical specification !

ModelZHUOKE-6090 CNC
Effective working area600*900mm
Machine materialscast iron machine bed , cast aluminum gantry
Working tableaircraft aluminum T slot
Moving typegantry moving
Guide railhiwin linear square guide rail or linear round
Transmissionball screw
Driving modestep motor or servo motor
spindle power1.5kw/2.2kw/3.2kw
Collet typeER11/20
Tools diameter3.175mm,4mm,6mm,8mm,10mm,12.7mm
Spindle speed24000rpm
Empty traveling speed0-8000mm/min
Engraving speed0-6000mm/min

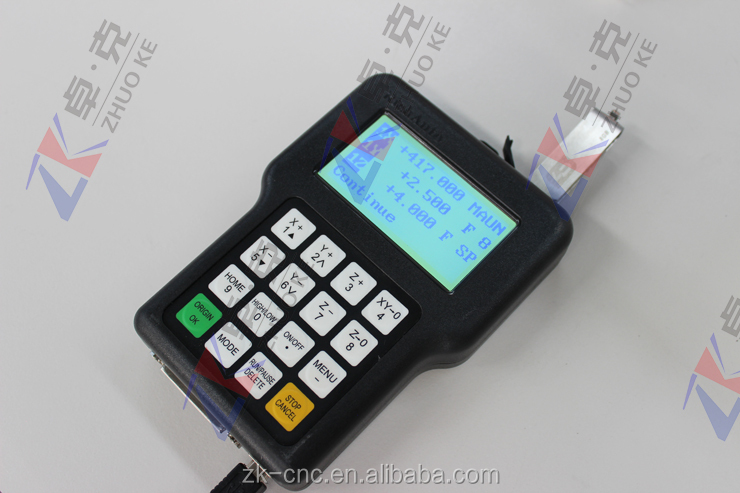

Control systemPCI NCStudio / Mach3 / DSP Handle
Machine voltageAC110V / AC220V /AC240V

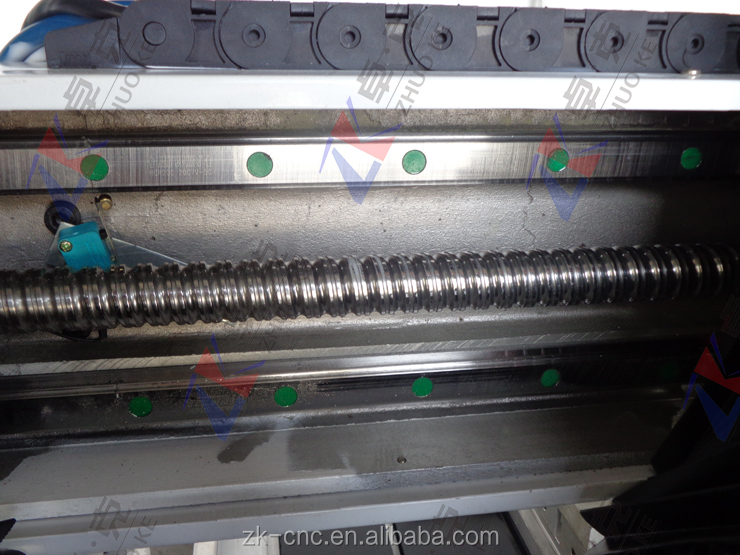

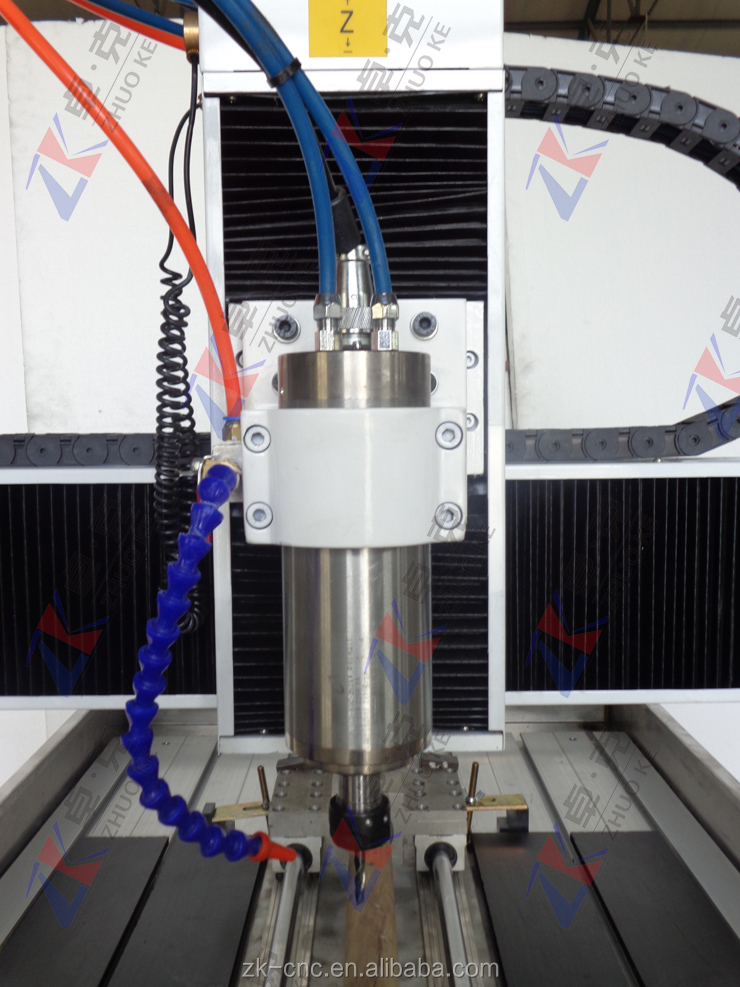

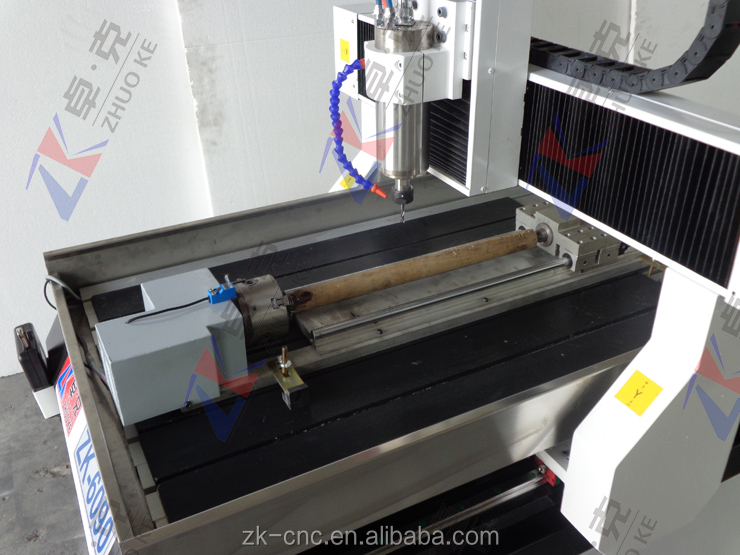

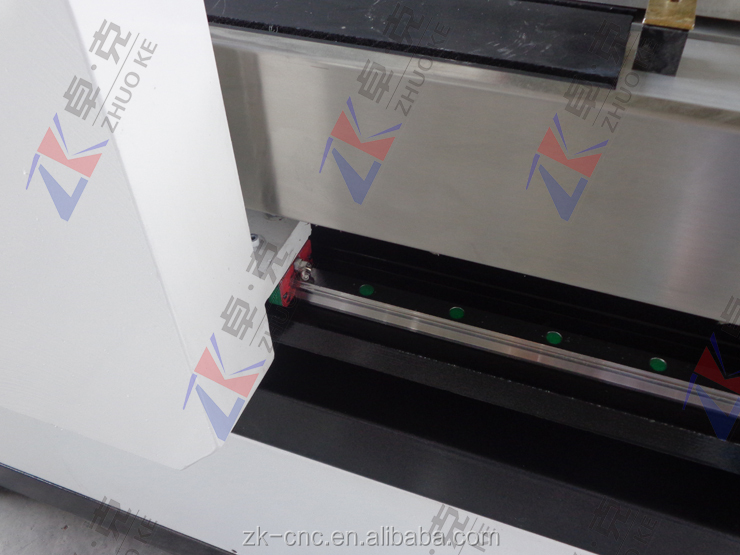

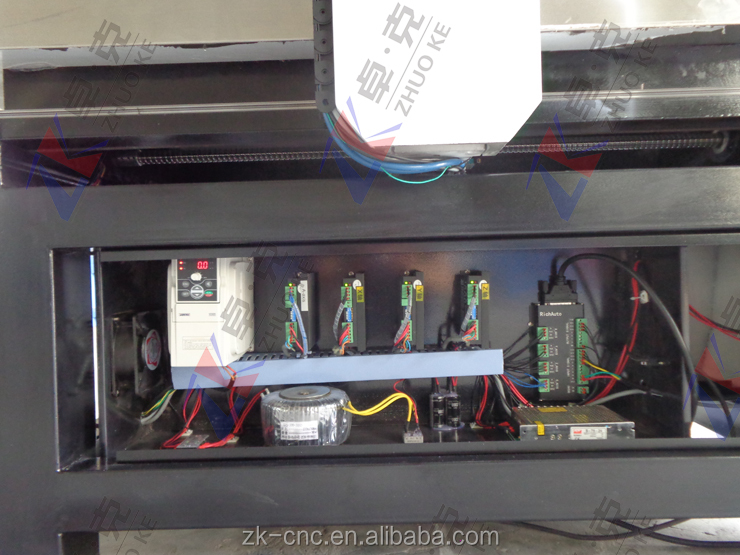

ZHUOKE-6090 CNC all adopt high quality parts from reputable suppliers , you can look through our detailed machine parts pictures from the below introduction !

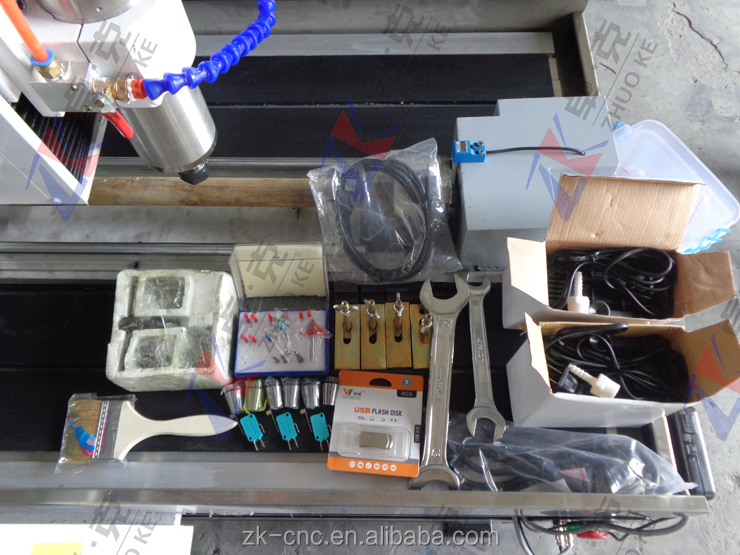

ZHUOKE-6090 CNC will be brought to your hand along with the below accessory parts to ensure your immediate using !

(11 pcs tools , water pump , power line ,USB line ,collet and nut , brush ,spanner ,limit switch ,CDS with user manual ,tape ,oil can )







ZHUOKE-6090 CNC will be packaged very carefully before shipping to ensure the machine in best condition when you get it ! let's look at our machine package and shipping procedure !

Packaging & Shipping



If you like our machine , just feel free to send us an inquiry letter !
