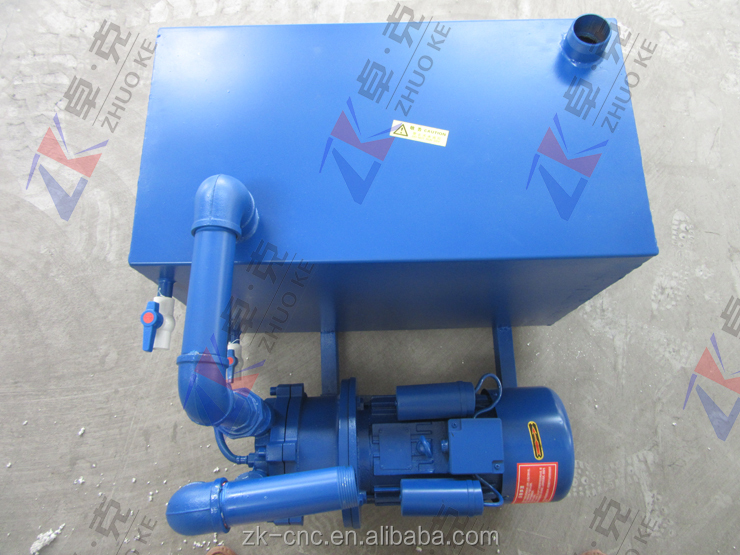

ZHUOKE-6090-3.2KW Small Wood CNC Router 600*900mm With Vacuum Table & Vacuum Pump

FOB Reference Price:Get Latest Price
US $2,800-3,500 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZHUOKE-6090
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Zhuoke
Voltage:
220V
Power(W):
3.2KW
Dimension(L*W*H):
1.5*1.2*1.6m
Weight:
350kg
Certification:
CE
Warranty:
1 Year
Working area:
600*900*150mm
Materials:
Cast iron machine bed cast aluminum gantry
Transmission:
Ball Screw
Guide Rail:
Linear Square Guide Rail
Working Table:
Vacuum Table
Driving mode:
86BYG-450A Stepper Motor
Spindle motor:
3.2KW Water Cooling Spindle
Spindle speed:
0-24000rpm/min
Control system:
PCI NCStudio Control
Empty traveling speed:
0-8000mm/min
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
One plywood case 3.5CBM 350kg
Port
Qingdao/Guangzhou/Shanghai or as you need
Product Description

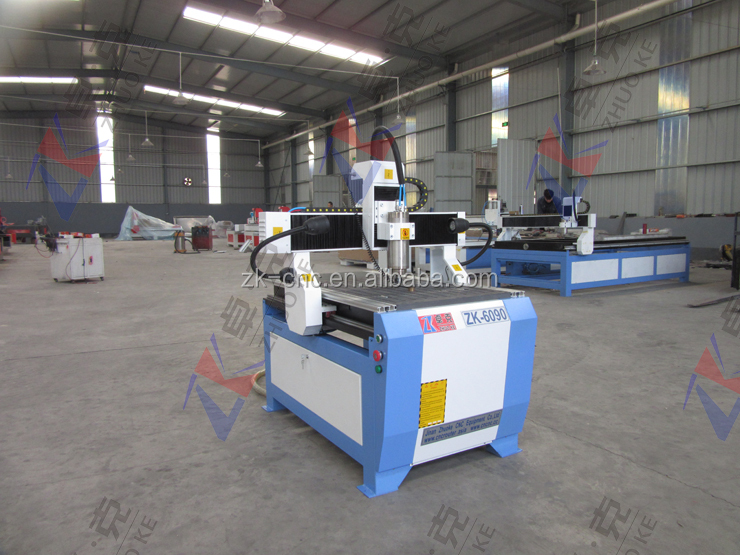

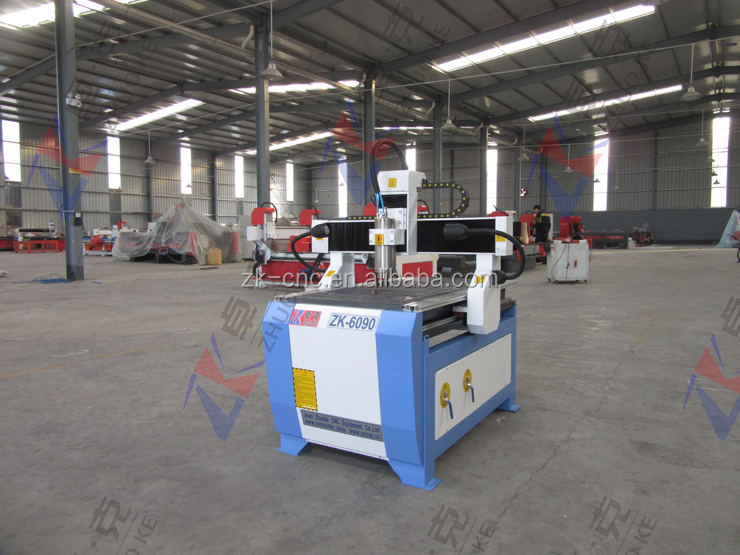

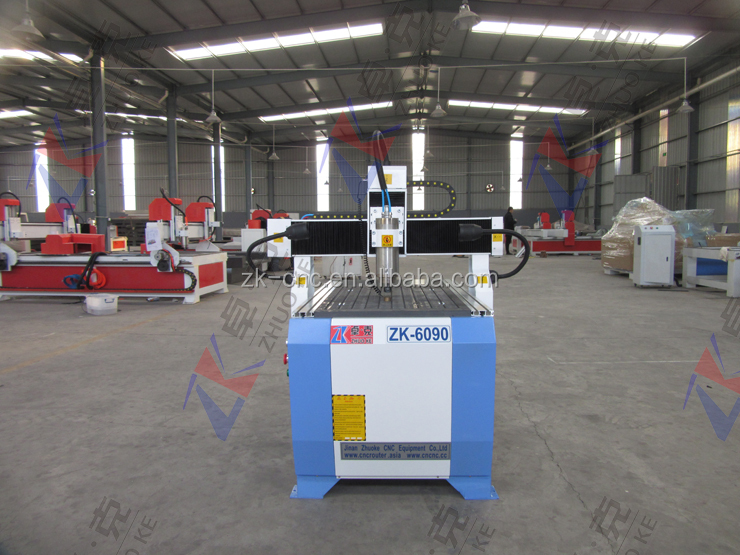

ZHUOKE-6090-3.2KW Small Wood CNC 6090 Router 600*900mm With Vacuum Table & Vacuum Pump

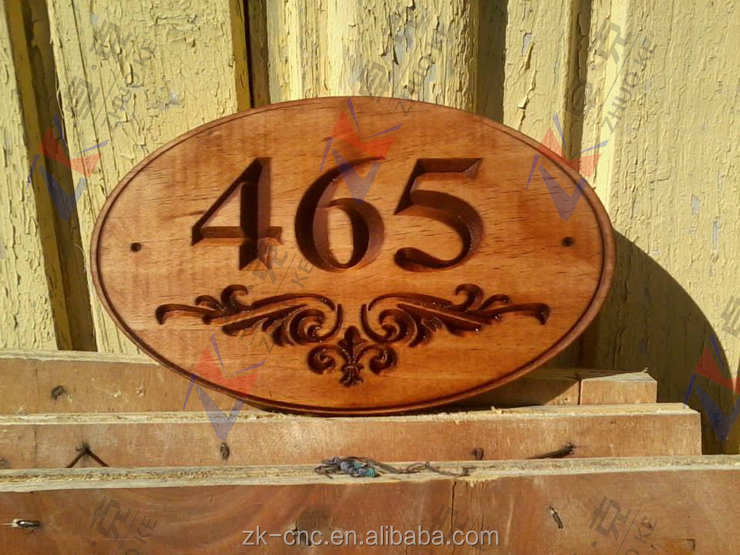

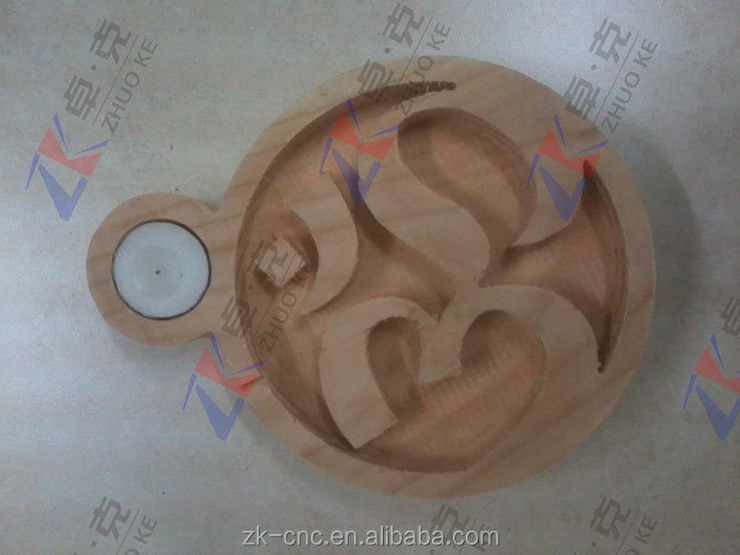

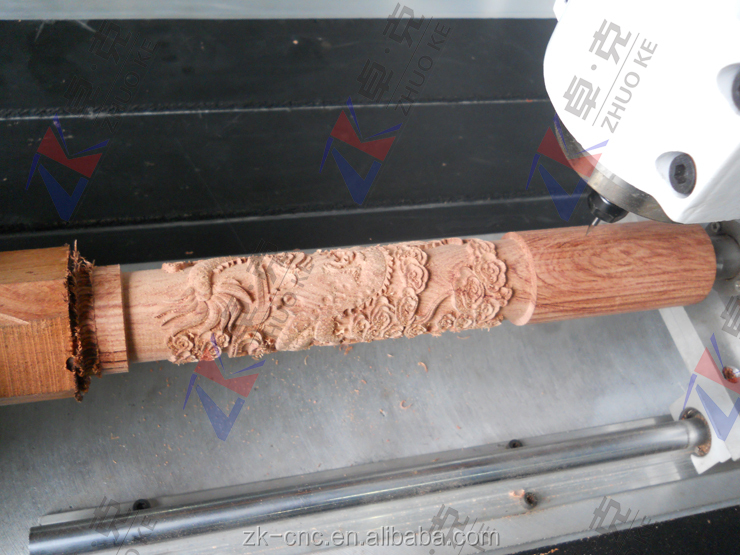

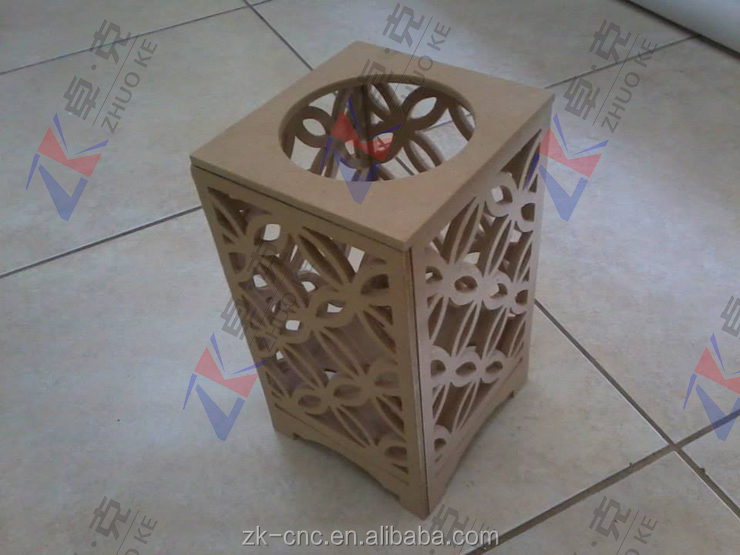

ZHUOKE-6090 Wood CNC Router is our best selling small size cnc router , it is mainly for small size materials processing like wood engraving & cutting ,stainless steel engraving ,copper engraving ,aluminum engraving , double color board engraving ,name plate engraving ,arcylic engraving & cutting ,MDF engraving & cutting , pvc cutting , aluminum composite panel cutting and other kinds of materials , you can check the below samples pictures for referrence !







To know more about our ZHUOKE-6090 CNC , please check the below technical specification !

ModelZHUOKE-6090 CNC
Effective working area600*900mm
Machine materialscast iron machine bed , cast aluminum gantry

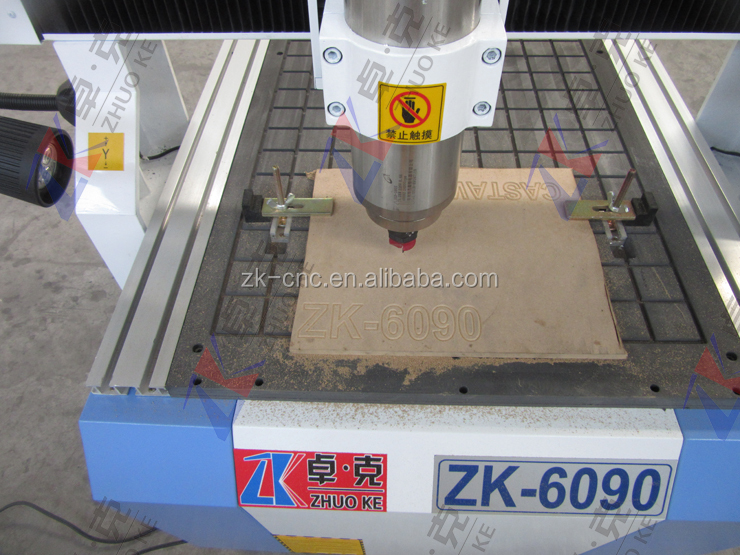

Working tablevacuum table
Moving typegantry moving

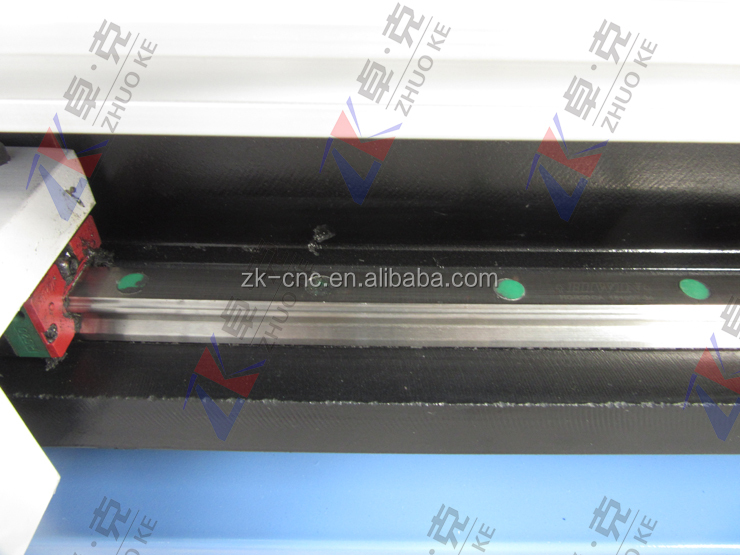

Guide railhiwin linear square guide rail or linear round
Transmissionball screw
Driving modestep motor or servo motor
spindle power1.5kw/2.2kw/3.2kw
Collet typeER11/20
Tools diameter3.175mm,4mm,6mm,8mm,10mm,12.7mm
Spindle speed24000rpm
Empty traveling speed0-8000mm/min
Engraving speed0-6000mm/min
Control systemPCI NCStudio / Mach3 / DSP Handle
Machine voltageAC110V / AC220V /AC240V

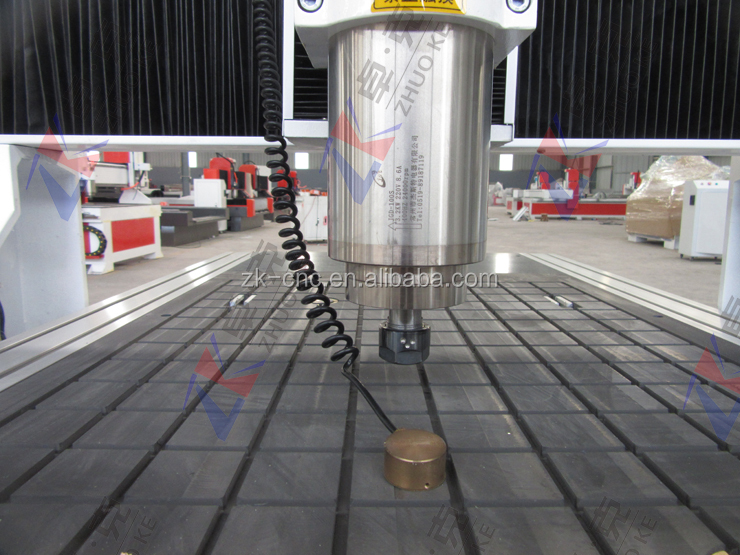

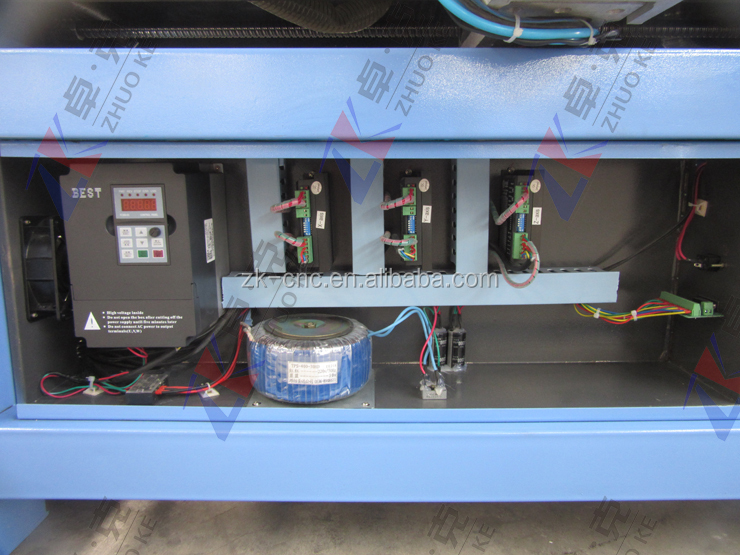

ZHUOKE-6090 CNC all adopt high quality parts from reputable suppliers , you can look through our detailed machine parts pictures from the below introduction !

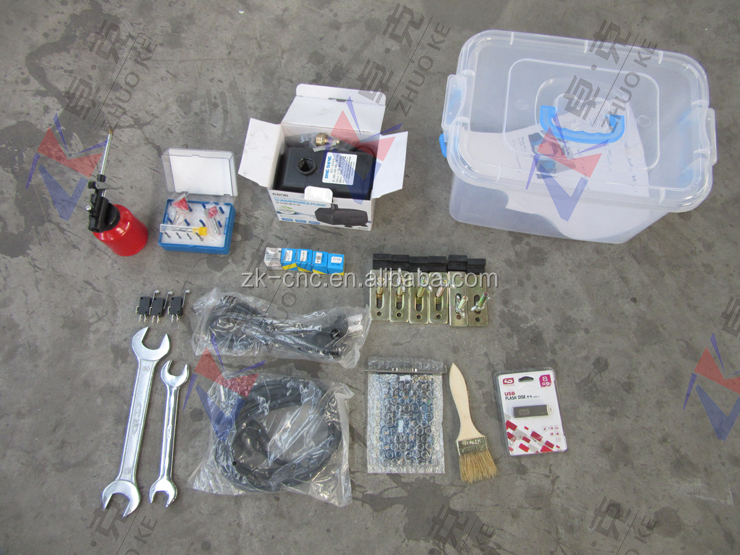

ZHUOKE-6090 CNC will be brought to your hand along with the below accessory parts to ensure your immediate using !

(11 pcs tools , water pump , power line ,USB line ,collet and nut , brush ,spanner ,limit switch ,CDS with user manual ,tape ,oil can )

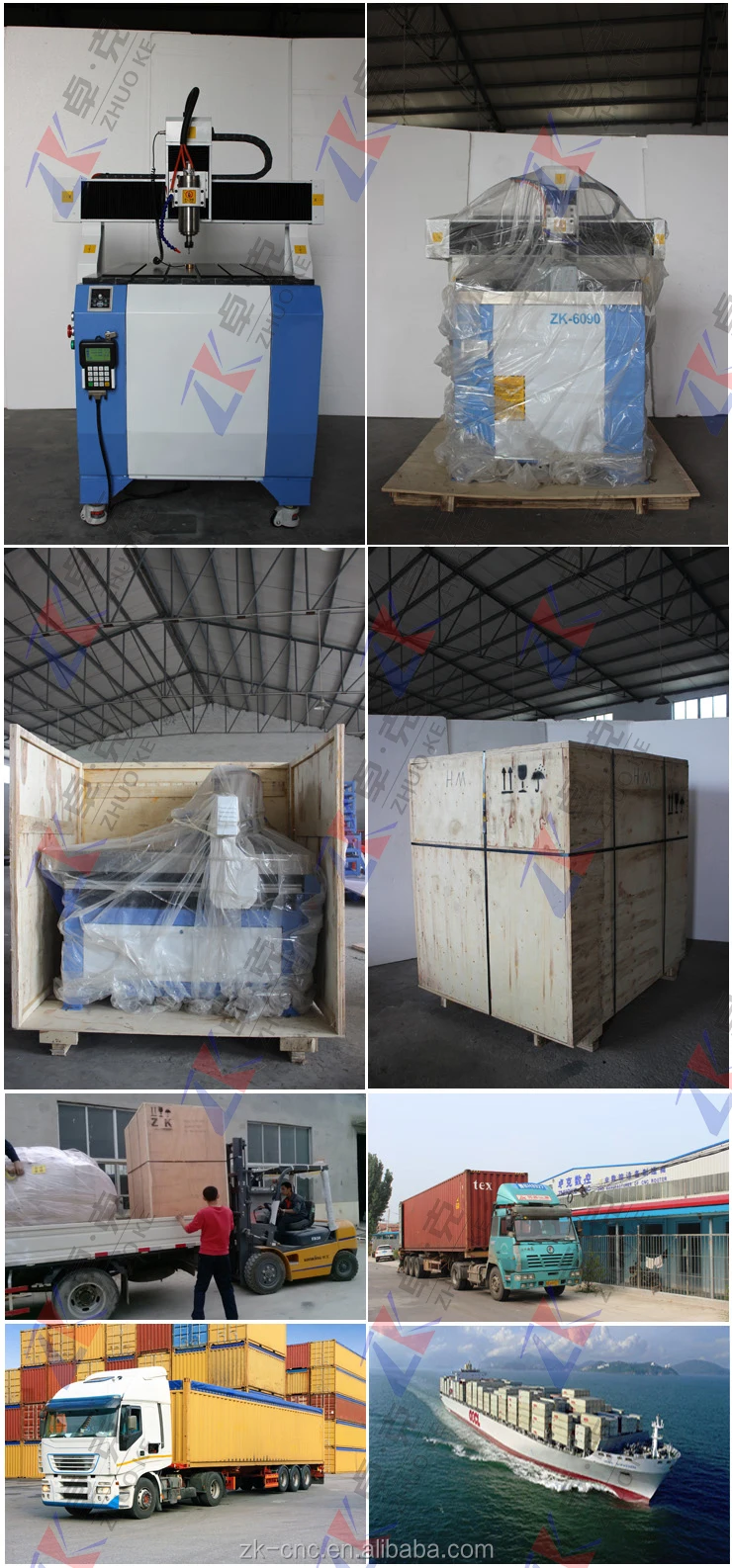

ZHUOKE-6090 CNC will be packaged very carefully before shipping to ensure the machine in best condition when you get it ! let's look at our machine package and shipping procedure !

Packaging & Shipping



If you like our machine , just feel free to send us an inquiry letter !
